Hi all, I am trying to collect data on how different drive modes affect range using real-world data, which I hope to share at the end. To start, I will share my own data from the past 150 miles below as part of the "100+ mile range efficiency challenge." To achieve the MSRP range of 410 miles for my vehicle, I would need to get ~2.92 mi/kWh. So I was pleasantly surprised that after ~150 miles, I am getting ~3 mi/kWh. If you would like to participate, I would appreciate it if you all could post a screenshot and include the parameters of the trip as I have outlined below. (I am also planning to do another 100+ range test next week using Sport mode)

Model: R1S Gen 2, Dual-motor, max pack
Wheel: 22'' sport
Drive mode: All-purpose
Height: Standard
Ride feel: Moderate
Regen: Moderate
Stability: On
Ambient temp: 48-60F

Total miles: 149.5
Efficiency (mi/kWh): 3.03
Average speed: mixed freeway/city speed (1-65 mph)

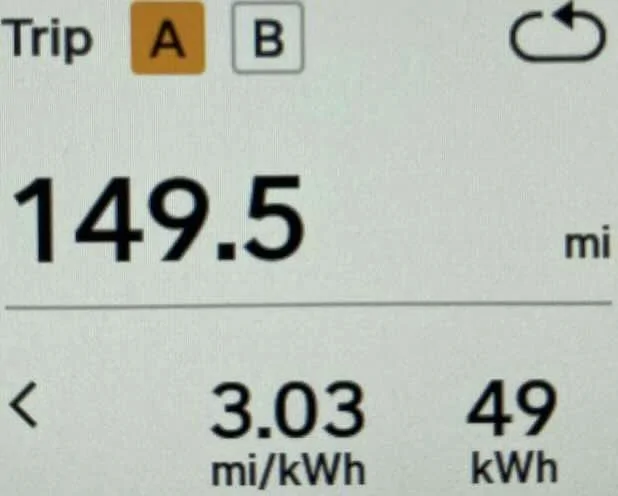

Rivian R1T R1S 100+ Mile Range Efficiency Challenge 1
Sponsored


Last edited:

mkhuffman

Well-Known Member
First Name
Mike
Joined
Nov 9, 2020
Threads
3
Messages
1,161
Reaction score
1,336
Location
Virginia
Vehicles
2025 R1T Tri-Max, Jeep GC-L, VW Jetta, Kia POS
Hi all, I am trying to collect data on how different drive modes affect range using real-world data, which I hope to share at the end. To start, I will share my own data from the past 150 miles below as part of the "100+ mile range efficiency challenge." To achieve the MSRP range of 410 miles for my vehicle, I would need to get ~2.92 mi/kWh. So I was pleasantly surprised that after ~150 miles, I am getting ~3 mi/kWh. If you would like to participate, I would appreciate it if you all could post a screenshot and include the parameters of the trip as I have outlined below. (I am also planning to do another 100+ range test next week using Sport mode)

Model: R1S Gen 2, Dual-motor, max pack
Drive mode: All-purpose
Height: Standard
Ride feel: Moderate
Regen: Moderate
Stability: On
Driving temp: 48-60C

Total miles: 149.5
Efficiency (mi/kWh): 3.03
Wheels?

Speed?

OP
OP

Formosan

Member
Joined
Mar 18, 2025
Threads
2
Messages
15
Reaction score
19
Location
Seattle
Vehicles
R1S
Wheels?

Speed?
Completely forgot about the wheels (such an important one)! I just added that to my original post. Speed is a difficult one to control IMO. I drive freeway/city to work, so 50/50.


DayTripping

Well-Known Member
First Name
Timothy
Joined
Sep 12, 2024
Threads
10
Messages
1,425
Reaction score
1,879
Location
DFW
Vehicles
Gen1 R1T QM, S Plaid, Highland 3 Perf, 3 Long Range, R2 on order
Occupation
Consultant
Hi all, I am trying to collect data on how different drive modes affect range using real-world data, which I hope to share at the end. To start, I will share my own data from the past 150 miles below as part of the "100+ mile range efficiency challenge." To achieve the MSRP range of 410 miles for my vehicle, I would need to get ~2.92 mi/kWh. So I was pleasantly surprised that after ~150 miles, I am getting ~3 mi/kWh. If you would like to participate, I would appreciate it if you all could post a screenshot and include the parameters of the trip as I have outlined below. (I am also planning to do another 100+ range test next week using Sport mode)

Model: R1S Gen 2, Dual-motor, max pack
Wheel: 22'' sport
Drive mode: All-purpose
Height: Standard
Ride feel: Moderate
Regen: Moderate
Stability: On
Driving temp: 48-60C

Total miles: 149.5
Efficiency (mi/kWh): 3.03
For driving temps are we talking motor, ambient, battery, what? If ambient 48-60C is pretty damn hot.

Speed range and avg speed is a must have.

OP
OP

Formosan

Member
Joined
Mar 18, 2025
Threads
2
Messages
15
Reaction score
19
Location
Seattle
Vehicles
R1S
For driving temps are we talking motor, ambient, battery, what? If ambient 48-60C is pretty damn hot.

Speed range and avg speed is a must have.
Added the speed and my bad on the temp (48-60F) - not sure why I was using celsius.


Sponsored

HaveBlue

Well-Known Member
Joined
Nov 22, 2022
Threads
30
Messages
2,396
Reaction score
1,815
Location
91107
Vehicles
R1S DMP Max, Lifted GX470, APR Audi A7, BMW 325Ci
Clubs

I think driving a flat piece of road or highway in both directions for a half an hour at constant speed would isolate the metric for each speed, height or mode you are trying to test.

OP
OP

Formosan

Member
Joined
Mar 18, 2025
Threads
2
Messages
15
Reaction score
19
Location
Seattle
Vehicles
R1S
I think driving a flat piece of road or highway in both directions for a half an hour at constant speed would isolate the metric for each speed, height or mode you are trying to test.
The question for me is under what condition can one achieve their MSRP range. It is never clear to me. At least for me, it is comforting to know that the conditions/parameters + whatever confounding factors that I am driving, that efficiency is achievable! It’s just my first test. As long as I can be consistent with my daily route, I can use it to test various modes.


mkhuffman

Well-Known Member
First Name
Mike
Joined
Nov 9, 2020
Threads
3
Messages
1,161
Reaction score
1,336
Location
Virginia
Vehicles
2025 R1T Tri-Max, Jeep GC-L, VW Jetta, Kia POS
I'll put my results in here when I have some, but I think the most important temperature measurement is battery temperature.

It could be 40 degrees outside but if the battery is 65 degrees the efficiency will be substantially better than if the battery is at ambient 40. This could happen if your garage is warm but the outside air is cold when you start the trip. This will be my situation regularly in the winter.


Budman

Well-Known Member
First Name
Rick
Joined
Oct 22, 2021
Threads
48
Messages
553
Reaction score
1,780
Location
Minnesota
Vehicles
Honda CRV
Clubs

I’ve posted my efficiency results many times before but here they are again. This is on a 165 mile route I do frequently. Mix of 70mph freeway and 55 mph rural roads. Avg speed is 54 mph. I’ve owned a Gen 1 quad and now a Gen 2 dual R1T

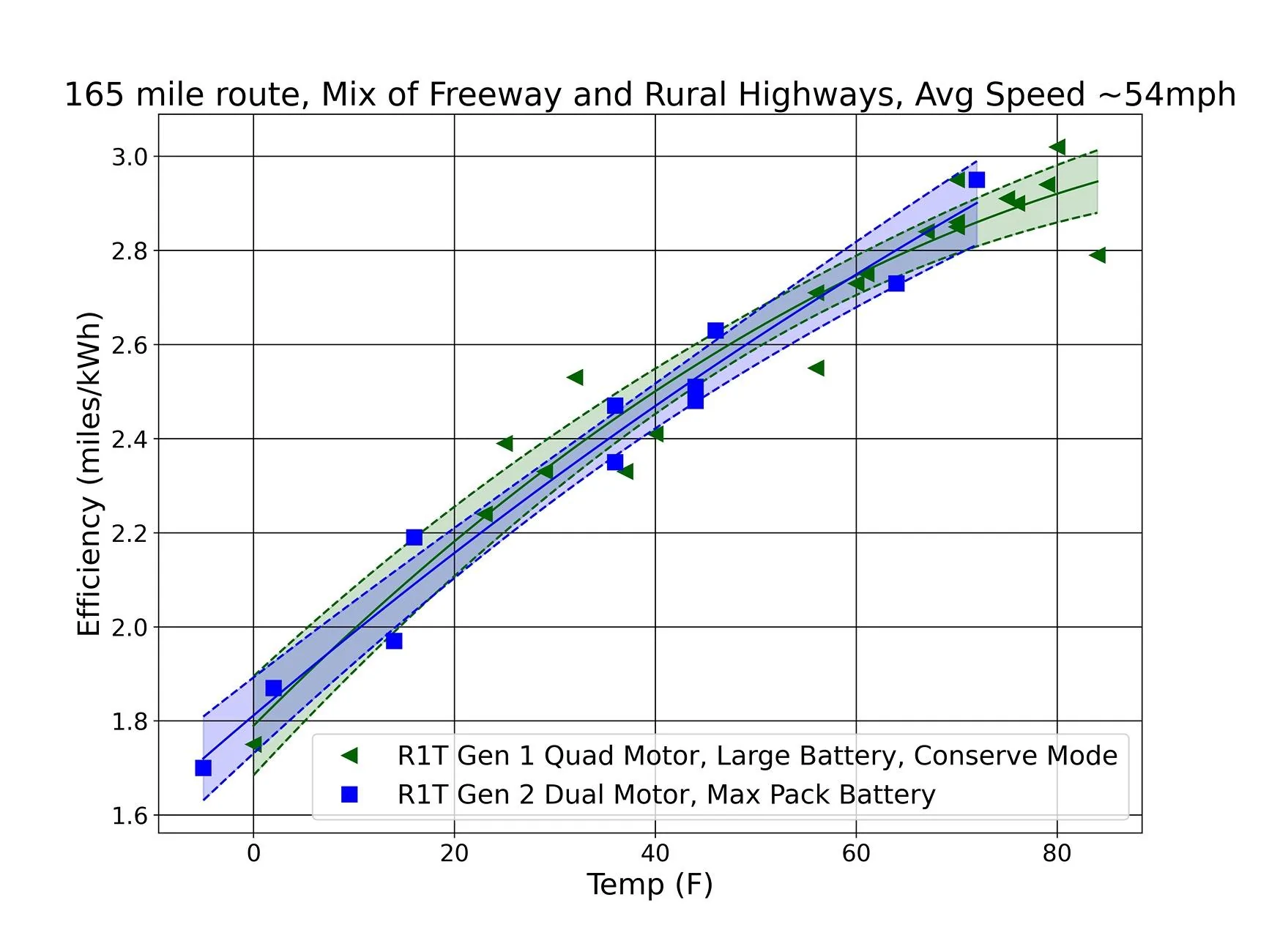

Rivian R1T R1S 100+ Mile Range Efficiency Challenge R1T efficiency vs tem

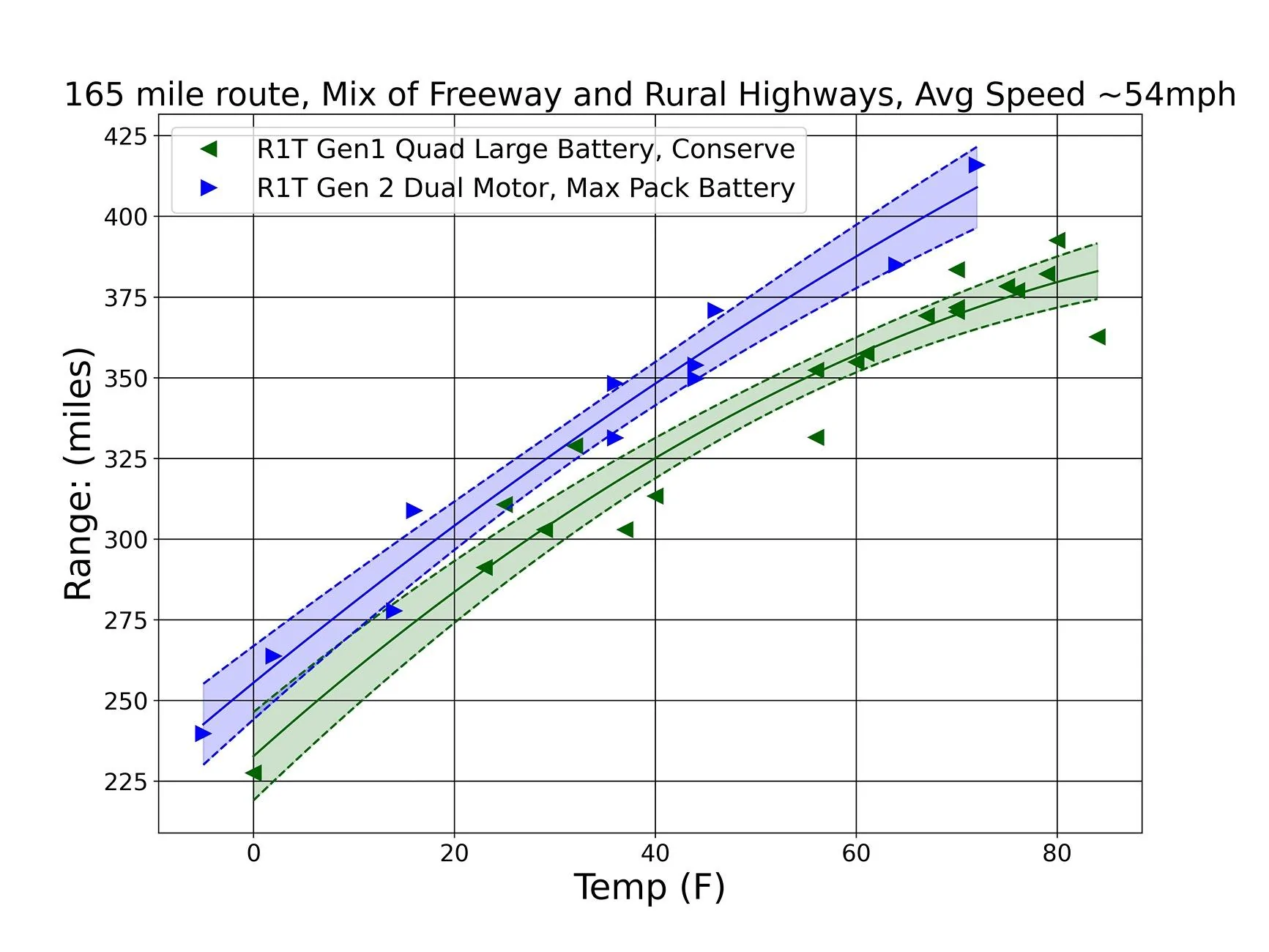

Rivian R1T R1S 100+ Mile Range Efficiency Challenge R1T range vs tem


Sponsored

mikehmb

Well-Known Member
First Name
Mike
Joined
Jan 12, 2022
Threads
125
Messages
1,987
Reaction score
4,396
Location
SF Bay Area
Vehicles
My name is Mike, and I have a (car) problem
I’ve posted my efficiency results many times before but here they are again. This is on a 165 mile route I do frequently. Mix of 70mph freeway and 55 mph rural roads. Avg speed is 54 mph. I’ve owned a Gen 1 quad and now a Gen 2 dual R1T




R1T efficiency vs temp.jpeg

R1T range vs temp.jpeg
This data is - again - fantastic. I recall seeing your early G1 data and was very pleased that mine tracked your graph. Now seeing the G2 data, I'm very conflicted.

G1 hits EPA #s pretty regularly in moderate ambient temps, and generally exceeds them if speeds are kept low (per your 54mph).

G2 hits EPA #s at warmer ambient, but doesn't look like it tracks to EPA until 10-20 degrees warmer than the G1 did.


Budman

Well-Known Member
First Name
Rick
Joined
Oct 22, 2021
Threads
48
Messages
553
Reaction score
1,780
Location
Minnesota
Vehicles
Honda CRV
Clubs

This data is - again - fantastic. I recall seeing your early G1 data and was very pleased that mine tracked your graph. Now seeing the G2 data, I'm very conflicted.

G1 hits EPA #s pretty regularly in moderate ambient temps, and generally exceeds them if speeds are kept low (per your 54mph).

G2 hits EPA #s at warmer ambient, but doesn't look like it tracks to EPA until 10-20 degrees warmer than the G1 did.
I've been a bit puzzled over that too. The Gen 1 Quad has AP and Conserve modes. I wonder if the EPA is a blend of the two. Gen 2 Dual is essentially always like the conserve mode on a steady speed drive like this. For purposes of clarity, I've only included data where I used the Gen 1 in conserve to compare to Gen 2.

I will add in that my vehicles have the standard Pirelli OEM road tires. 21" on the Gen 1. 22" on Gen 2.

Another note to add. The heat pump on the Gen 2 appears to provide no efficiency benefit.

All purpose data (RED POINTS) included here;
Rivian R1T R1S 100+ Mile Range Efficiency Challenge R1T efficiency vs tem

Rivian R1T R1S 100+ Mile Range Efficiency Challenge R1T range vs tem


mikehmb

Well-Known Member
First Name
Mike
Joined
Jan 12, 2022
Threads
125
Messages
1,987
Reaction score
4,396
Location
SF Bay Area
Vehicles
My name is Mike, and I have a (car) problem
I've been a bit puzzled over that too. The Gen 1 Quad has AP and Conserve modes. I wonder if the EPA is a blend of the two. Gen 2 Dual is essentially always like the conserve mode on a steady speed drive like this. For purposes of clarity, I've only included data where I used the Gen 1 in conserve to compare to Gen 2.

I will add in that my vehicles have the standard Pirelli OEM road tires. 21" on the Gen 1. 22" on Gen 2.

Another note to add. The heat pump on the Gen 2 appears to provide no efficiency benefit.

All purpose data (RED POINTS) included here;
R1T efficiency vs temp.jpg

R1T range vs temp.jpg
Actually good point - I think the EPA #s on the G1 were based on AP, not Conserve, in which case the G1 was hitting EPA in slightly different temps (wasn't original G1 Quad range 314 with 21" wheels and later revised up to 320-ish?).


Zoidz

Well-Known Member
First Name
Gil
Joined
Feb 28, 2021
Threads
172
Messages
4,564
Reaction score
10,144
Location
PA
Vehicles
23 R1S Adv, Avalanche, BMWs-X3,330cic,K1200RS bike
Occupation
Engineer
I think driving a flat piece of road or highway in both directions for a half an hour at constant speed would isolate the metric for each speed, height or mode you are trying to test.
This.

The biggest variable in a study such as this on a diverse forum is terrain. My numbers would pull this study way down - I have a ~700 foot elevation change from home to work, and I would have to drive 90 minutes to be on a suitable flat road as a "standard". No, downhill regen does not make up the uphill extra energy usage.

OP
OP

Formosan

Member
Joined
Mar 18, 2025
Threads
2
Messages
15
Reaction score
19
Location
Seattle
Vehicles
R1S
I’ve posted my efficiency results many times before but here they are again. This is on a 165 mile route I do frequently. Mix of 70mph freeway and 55 mph rural roads. Avg speed is 54 mph. I’ve owned a Gen 1 quad and now a Gen 2 dual R1T




R1T efficiency vs temp.jpeg

R1T range vs temp.jpeg
Thank you for posting it again. My first time seeing it. A couple questions about ur graph just so I am interpreting it correctly: 1) what is each data point represent (eg., the first graph, R1T gen 2, you have 11 data pts on the graph, is each point a trip taken at that particular temp for 165 mi)? 2) is your R1T gen 2 data from All-Purpose mode?
